Pull Weight 4 - 32 oz

Description

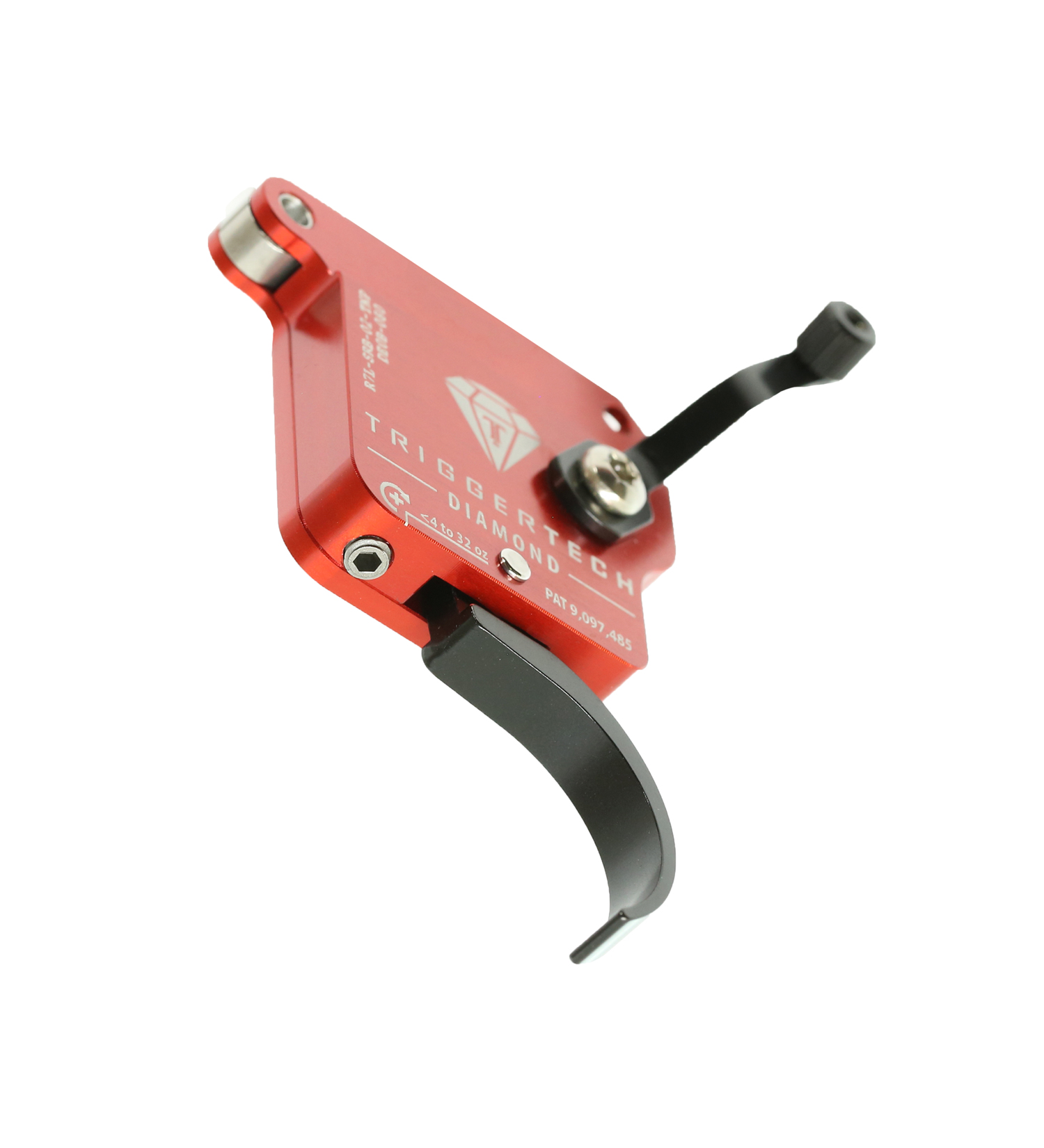

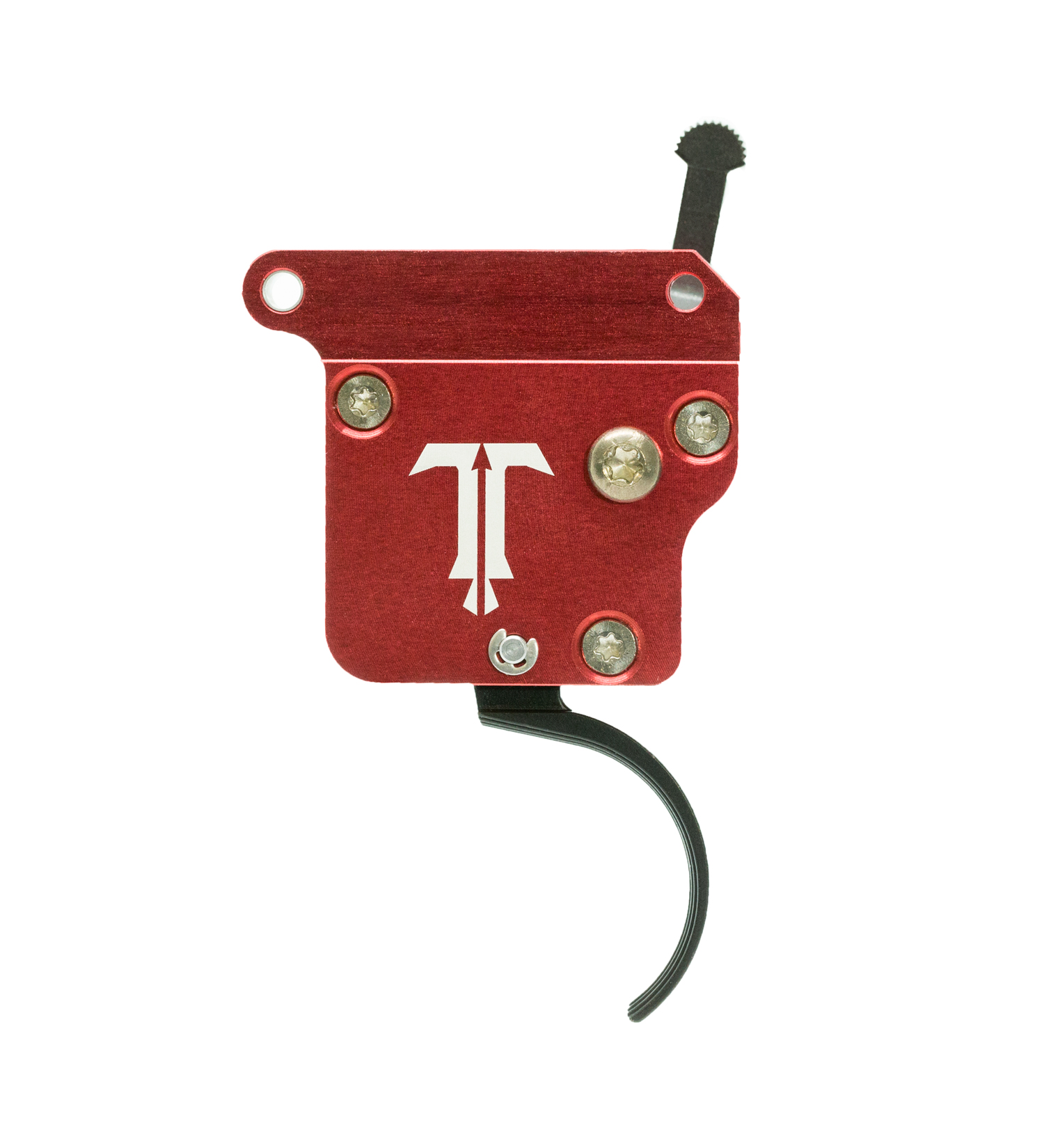

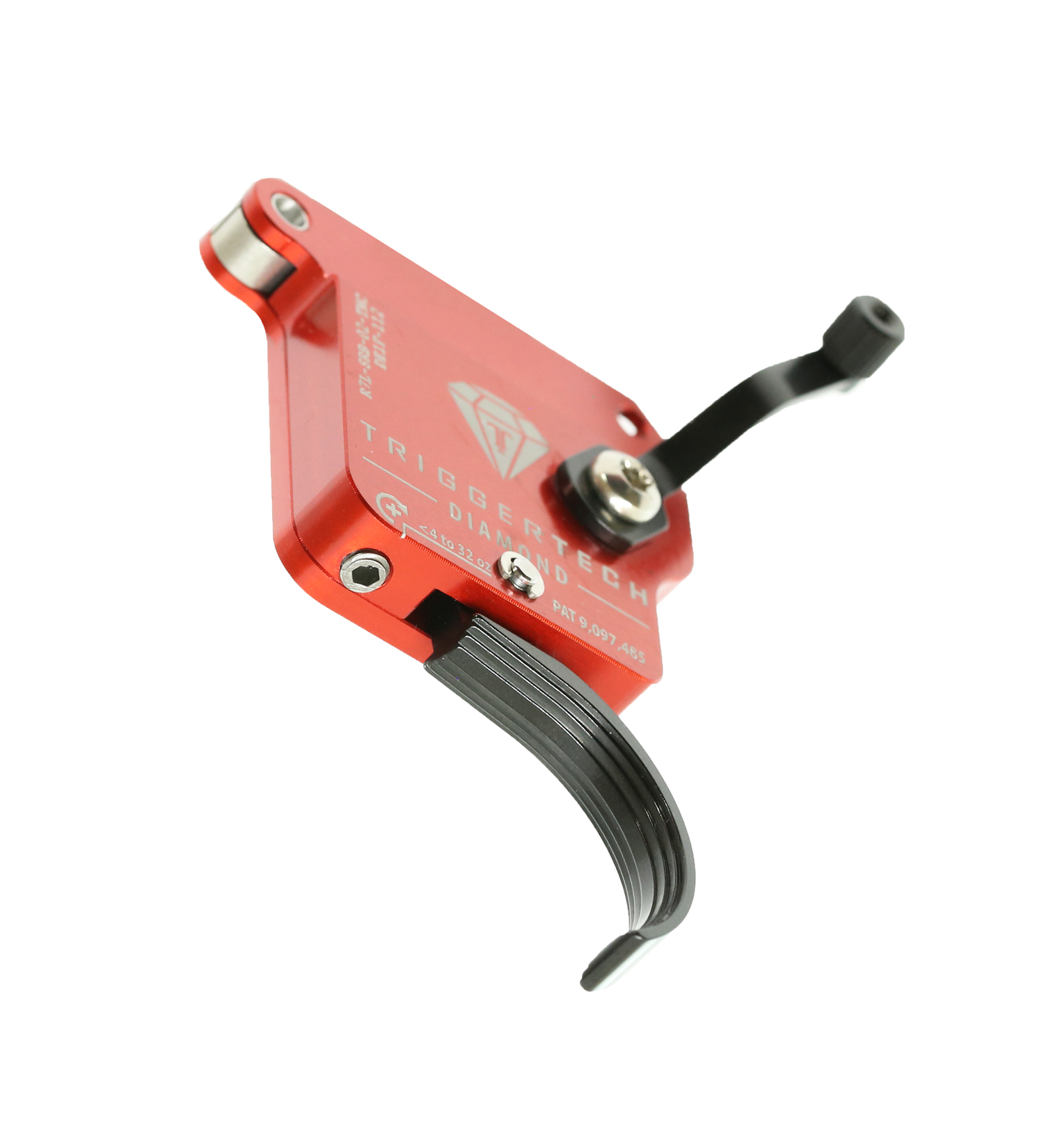

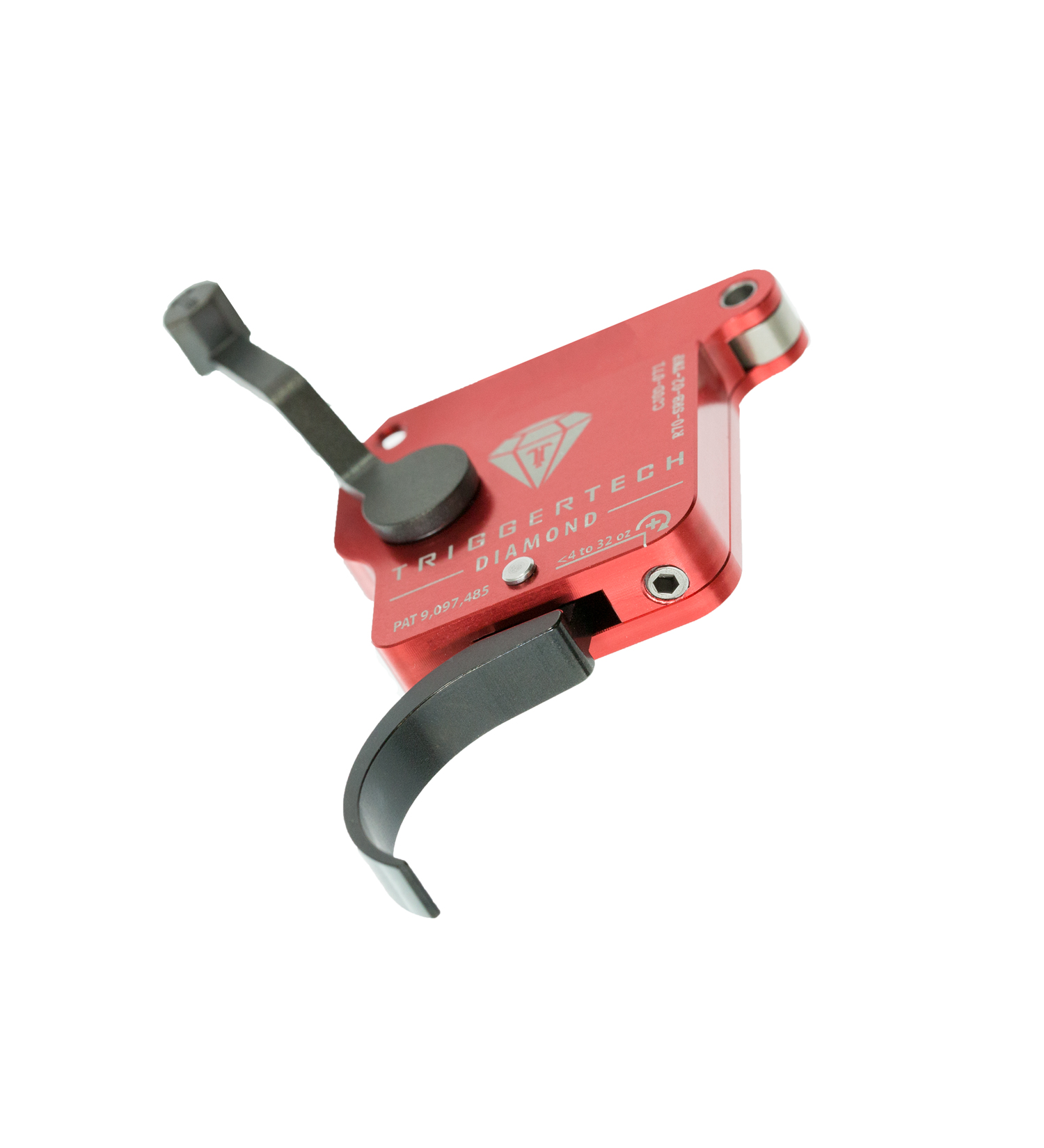

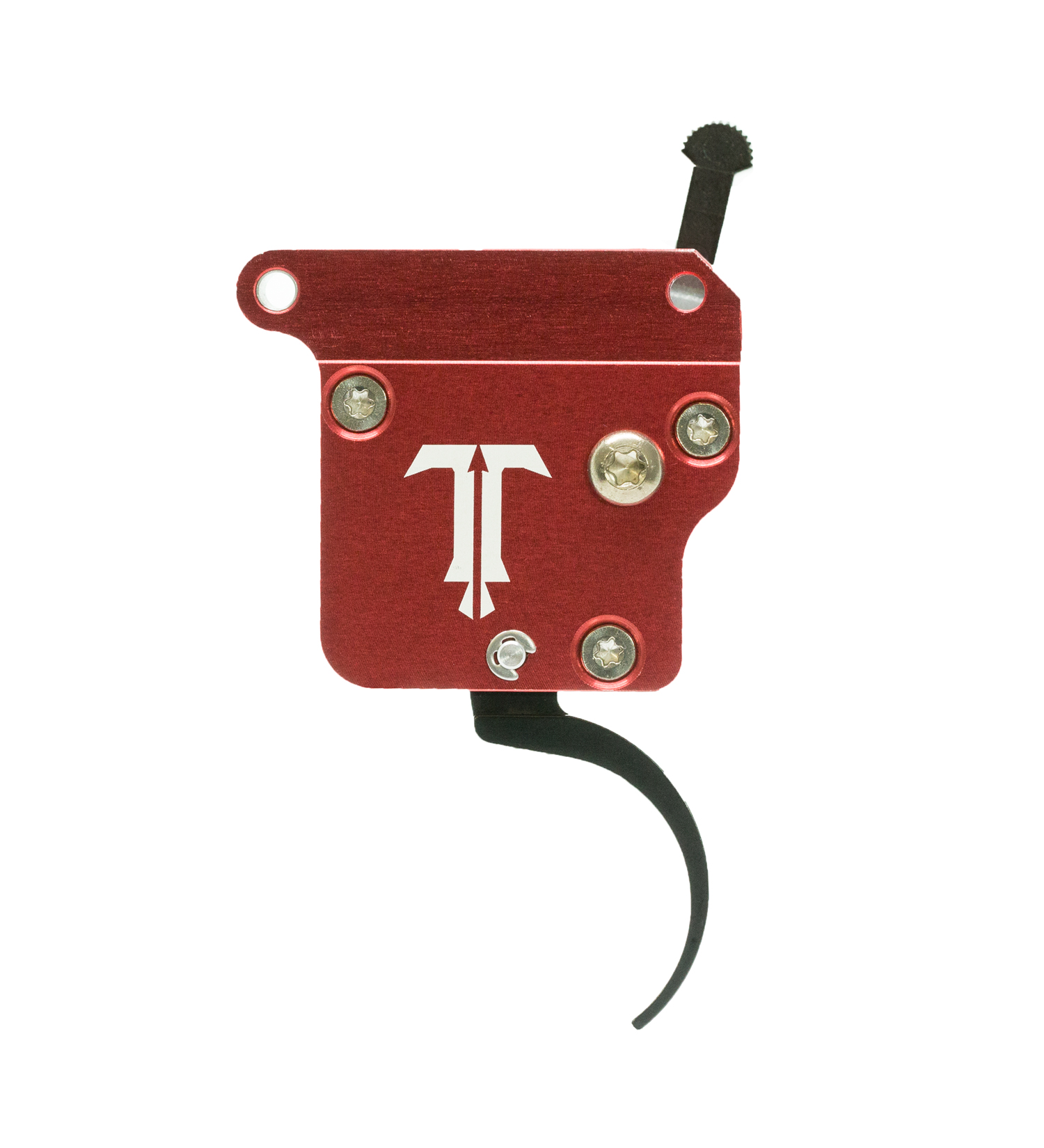

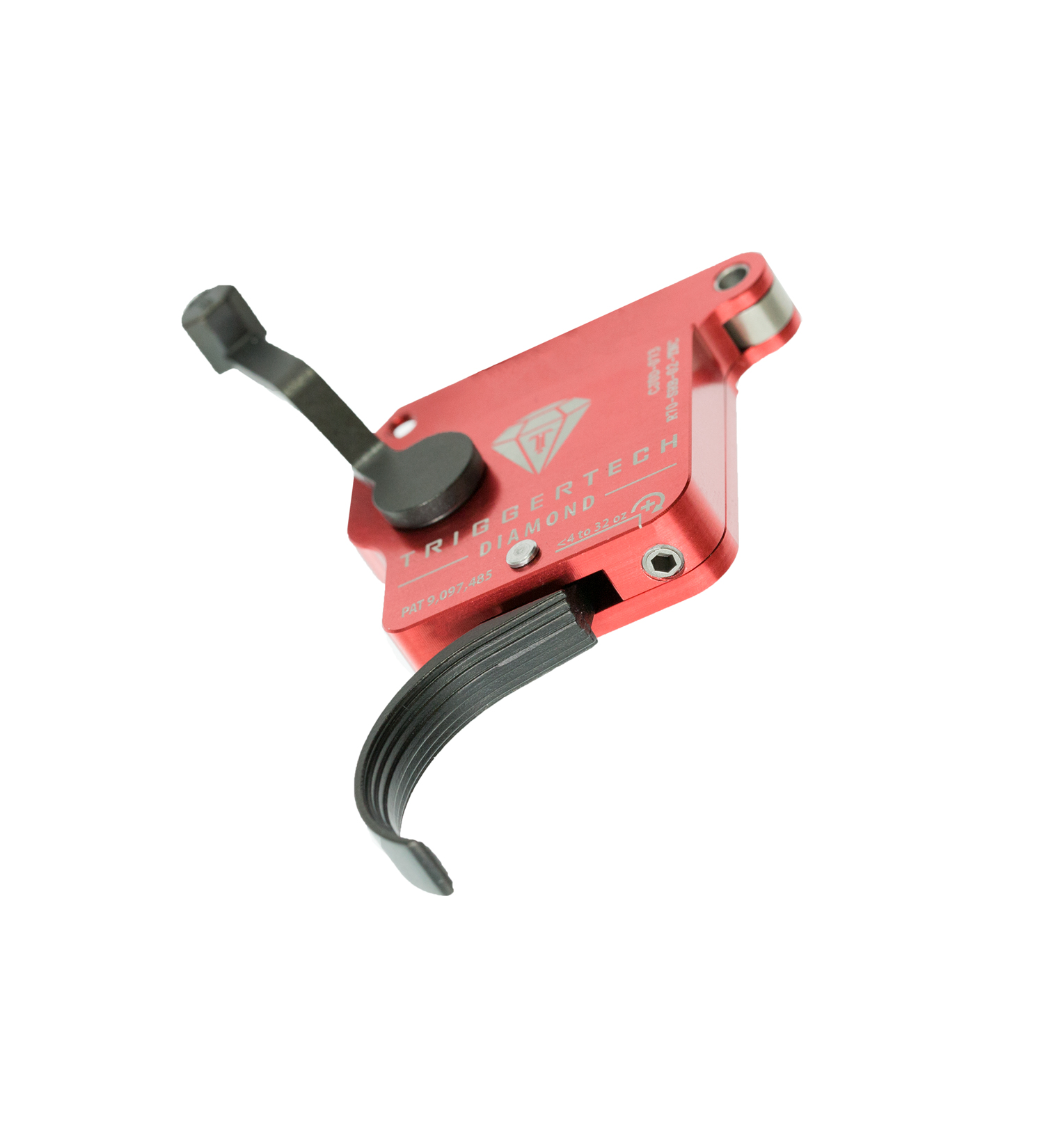

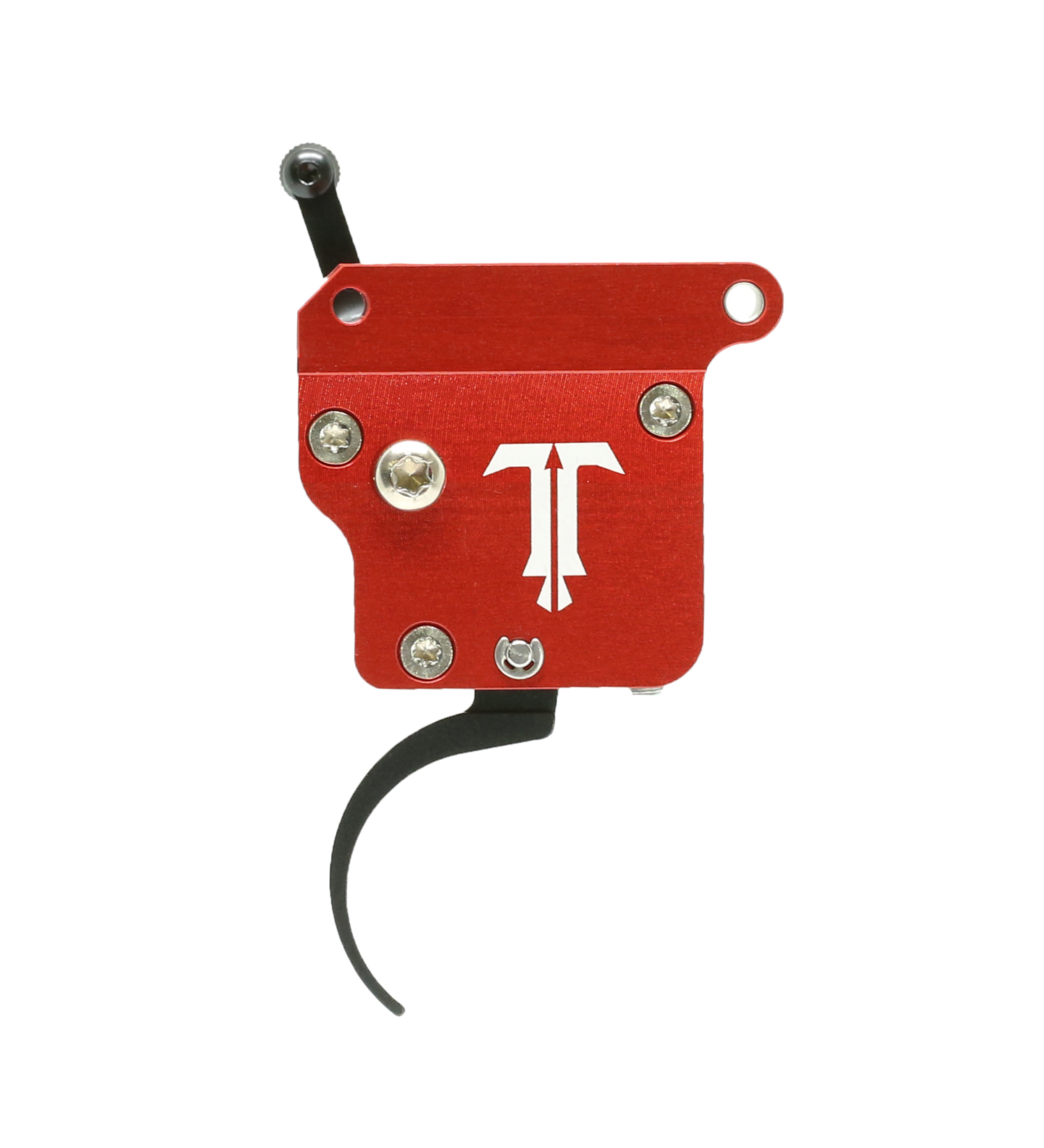

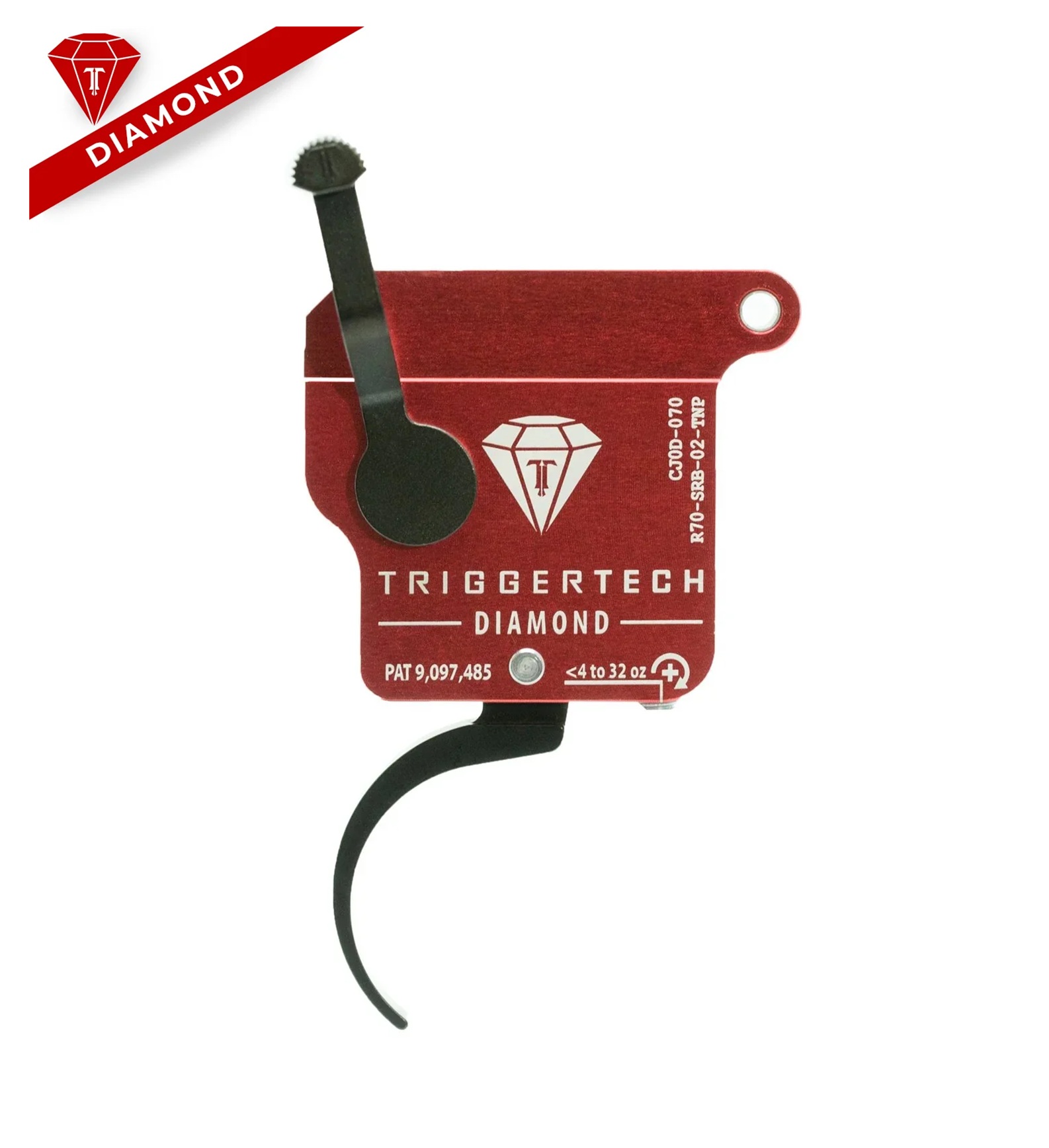

Our TriggerTech Diamond Trigger for Remington 700 cloned action firearms are the best-in-class triggers designed to meet the requirements of leading competitive shooters. Our Diamond Trigger is designed with the help of the K & M Shooting Team and several leading Remington 700 cloned action manufacturers.

Pull weight range of <4 oz - 32 oz
Variable Rate Adjustment Technology

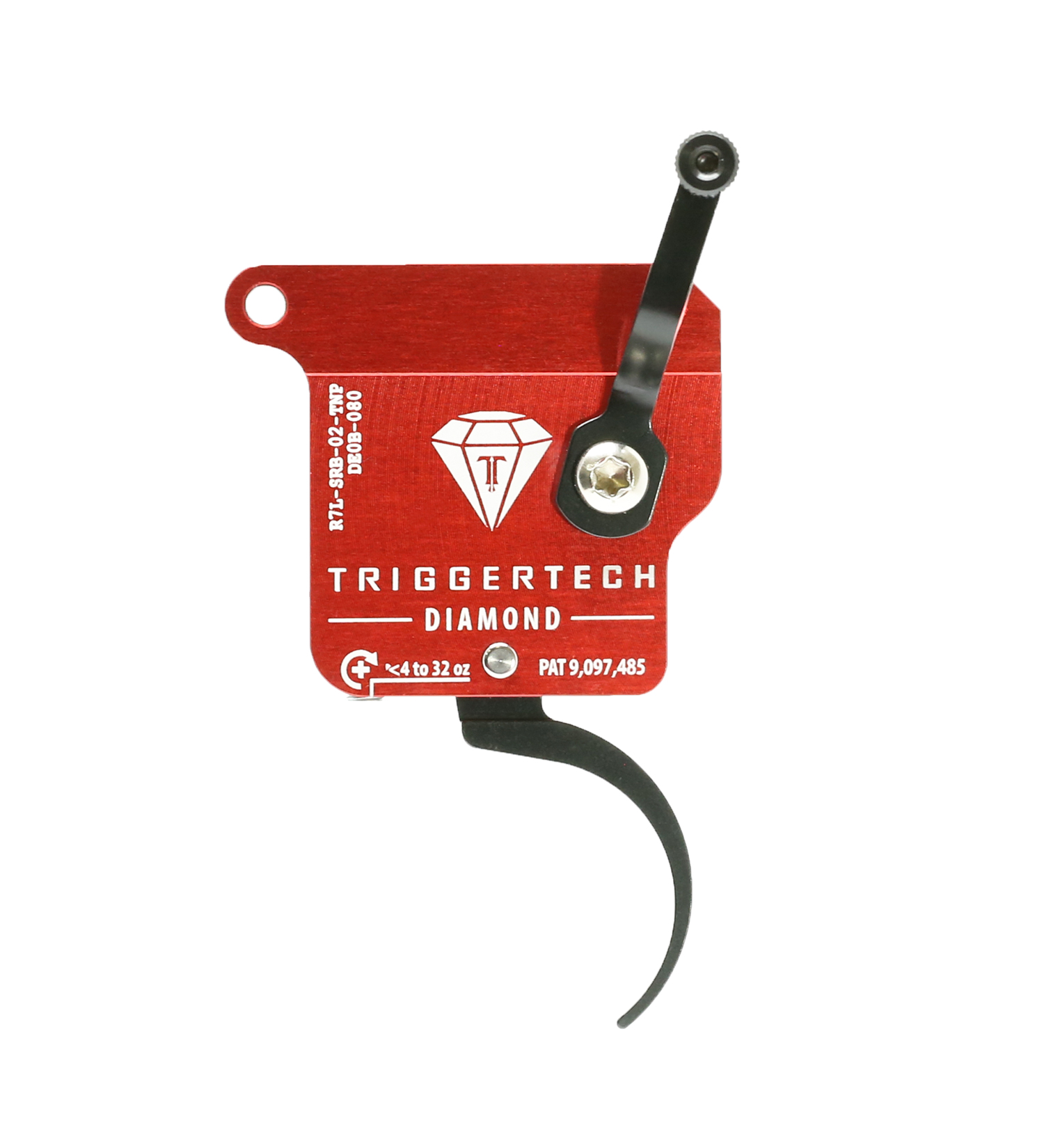

Available with pro curved trigger lever

With TriggerTech's patented Zero Creep Technology™, our shooters have described it as the most consistent and crisp breaking trigger they have ever felt. After feeling the crisp break on the Diamond Trigger you will immediately become aware of the creep that exists in all other triggers. Five of the critical Diamond components are assembled as matched set to enable a true zero-creep break, extremely short overtravel, and offers outstanding reliability.

Our TriggerTech Diamond Triggers are made with hardened 440C stainless steel internal components to ensure corrosion resistance and an extended service life. As Zero Creep Technology™ does not rely on coating, polishing or lubricating the key engagement surfaces, trigger pulls will be more consistent from shot to shot, and after thousands of shots more than you ever thought possible.

Download the instruction manual here.

All pull weights and measurements are approximate. Pull weights of TriggerTech triggers are directly impacted by firing pin spring weight. Overweight firing pin springs may cause pulls weights to vary above the advertised range.

Intended Use

Precision Rifle, benchrest, competition, precision shooting, military, law enforcement, long range hunting, F Class, rugged hunting, harsh environments operations, target shooting, ultra long range, varmint hunting.

Trigger Control Details

Weapon Platform: Remington 700 Clone Actions

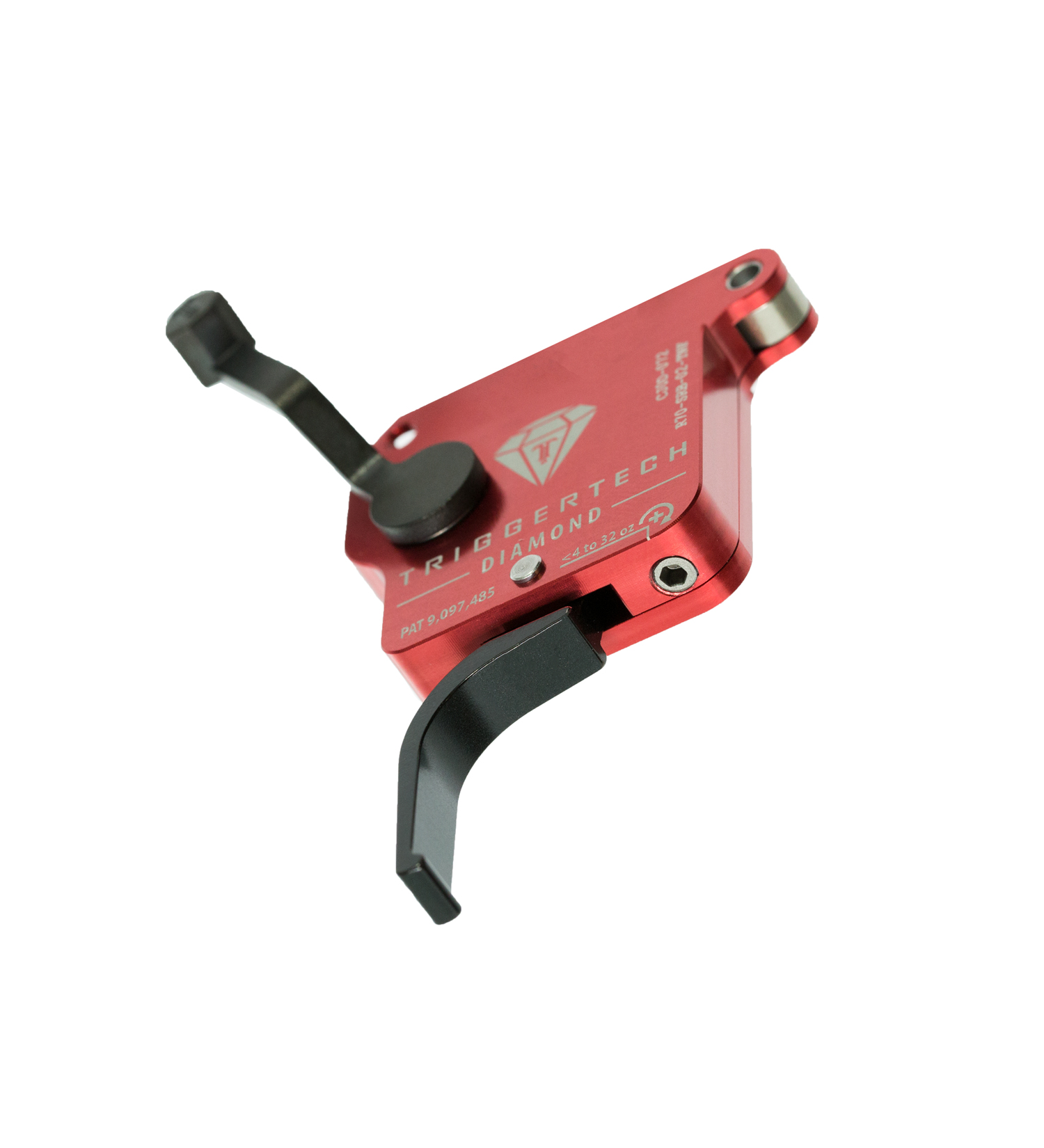

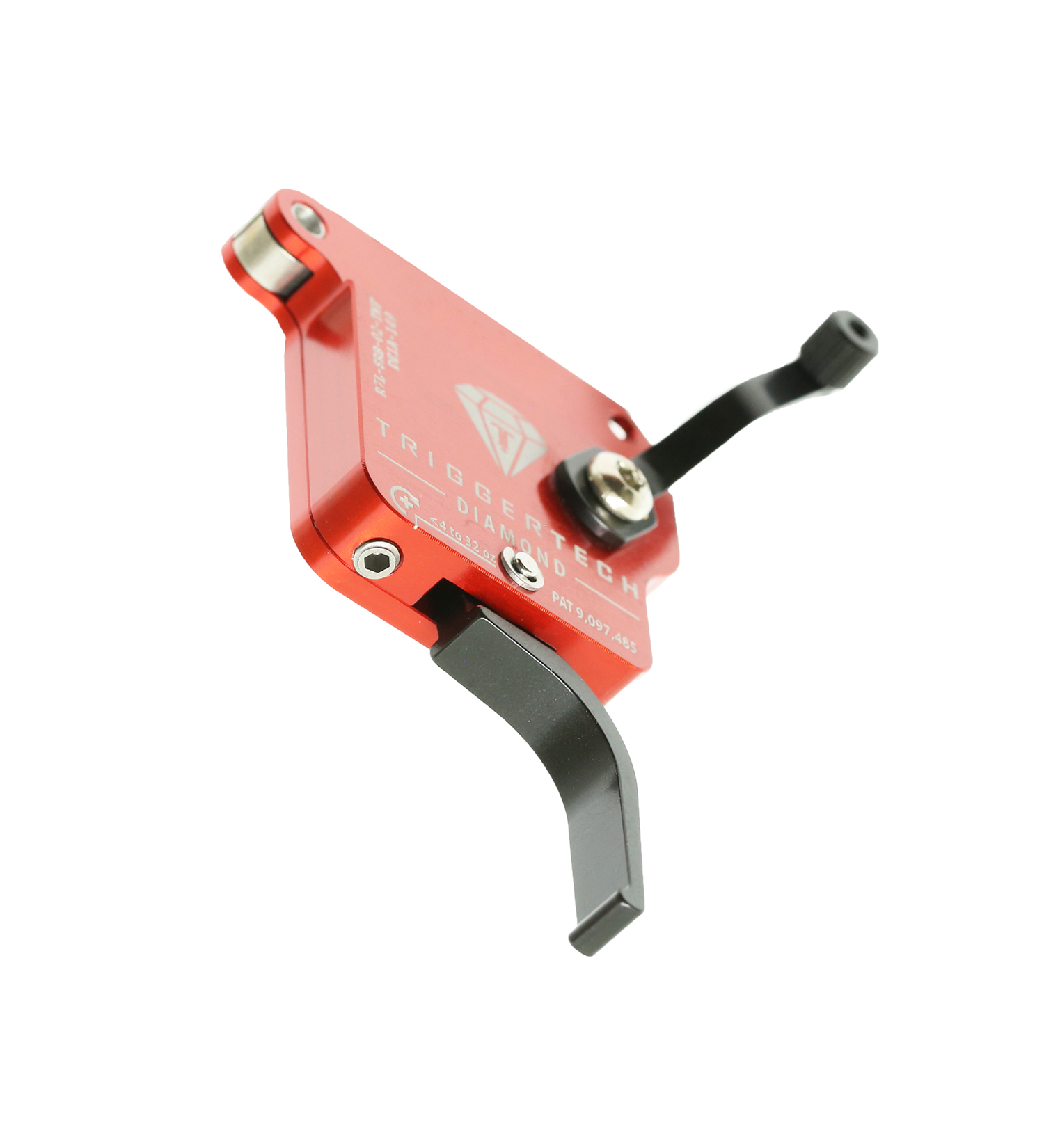

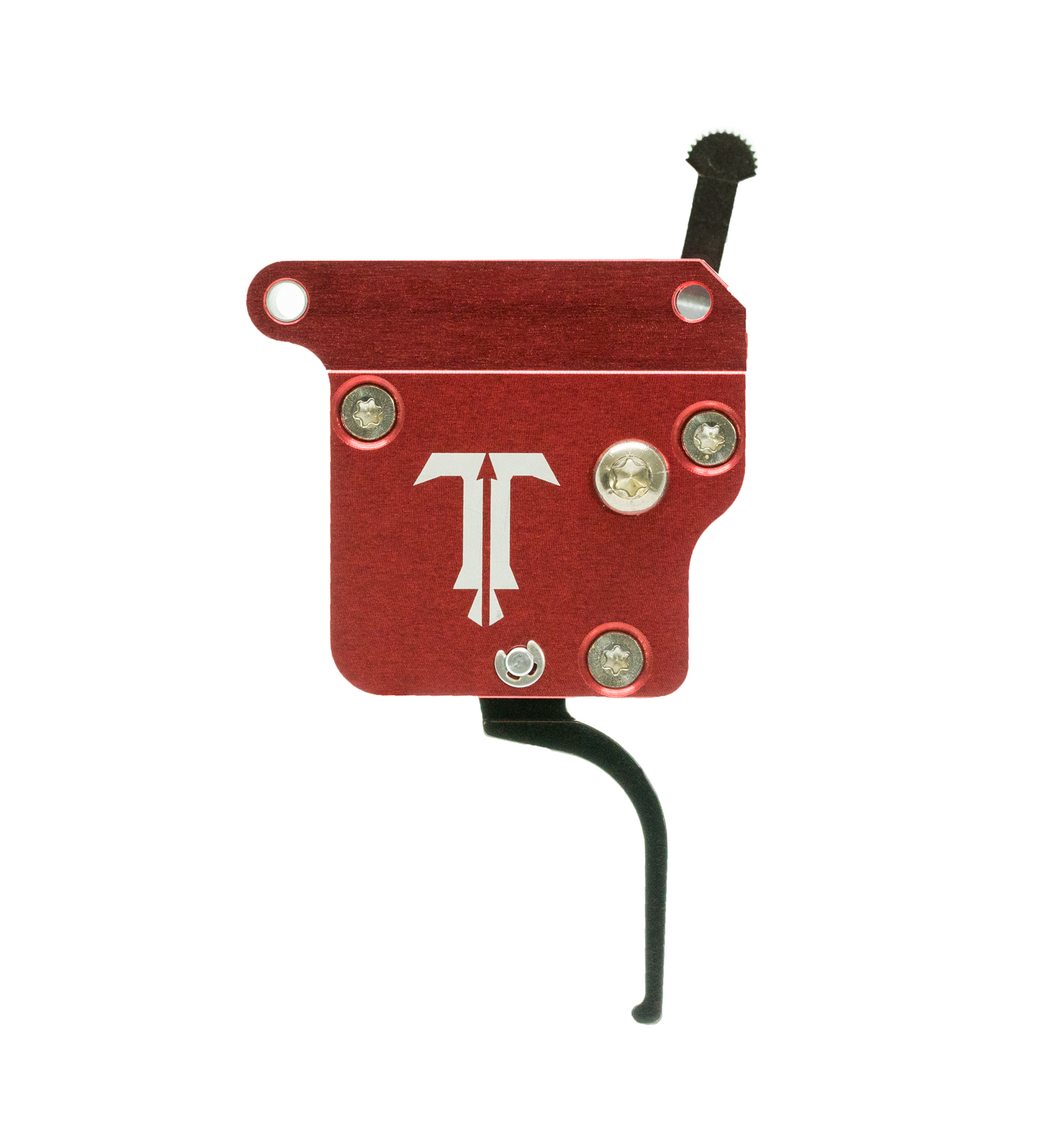

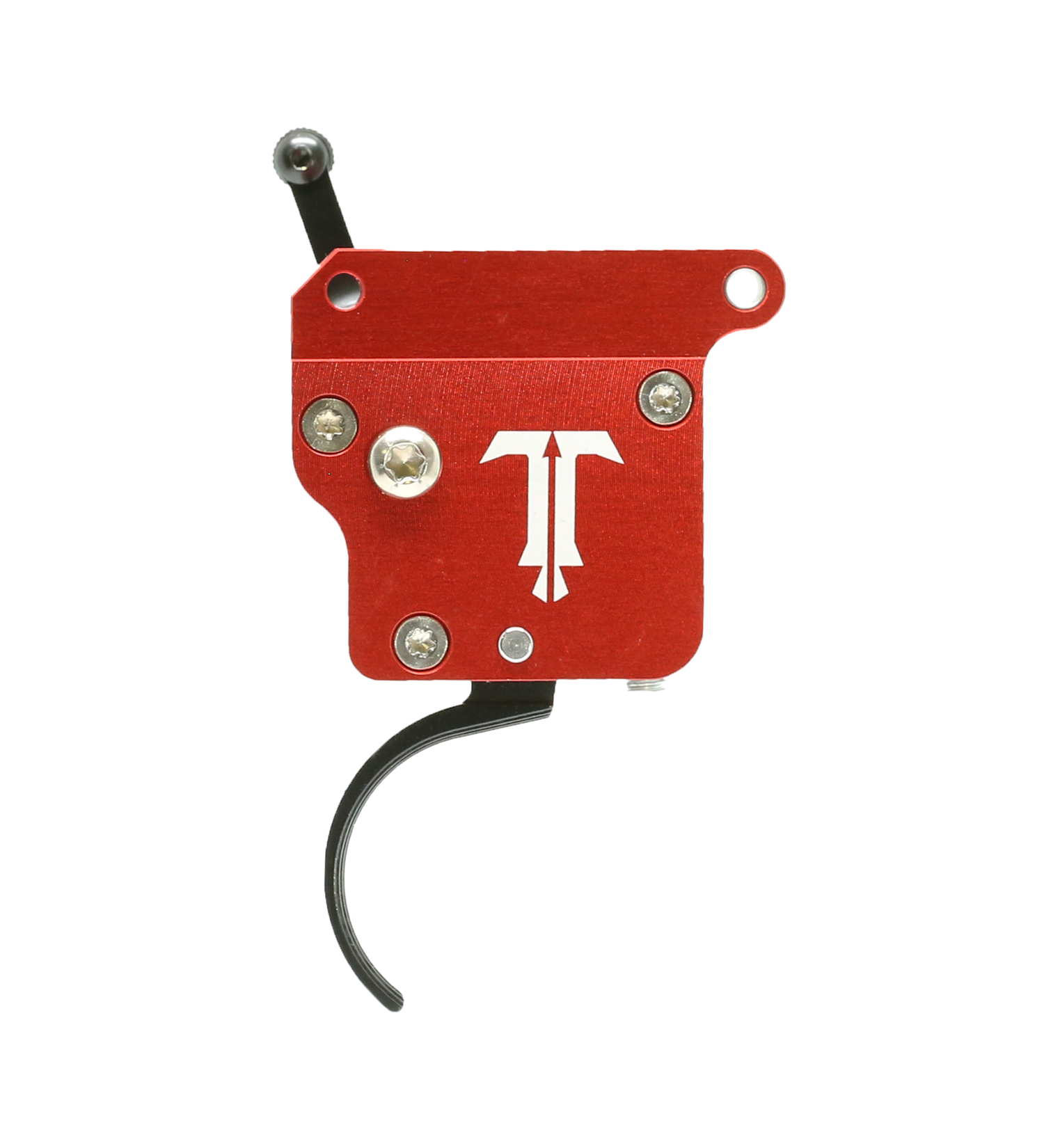

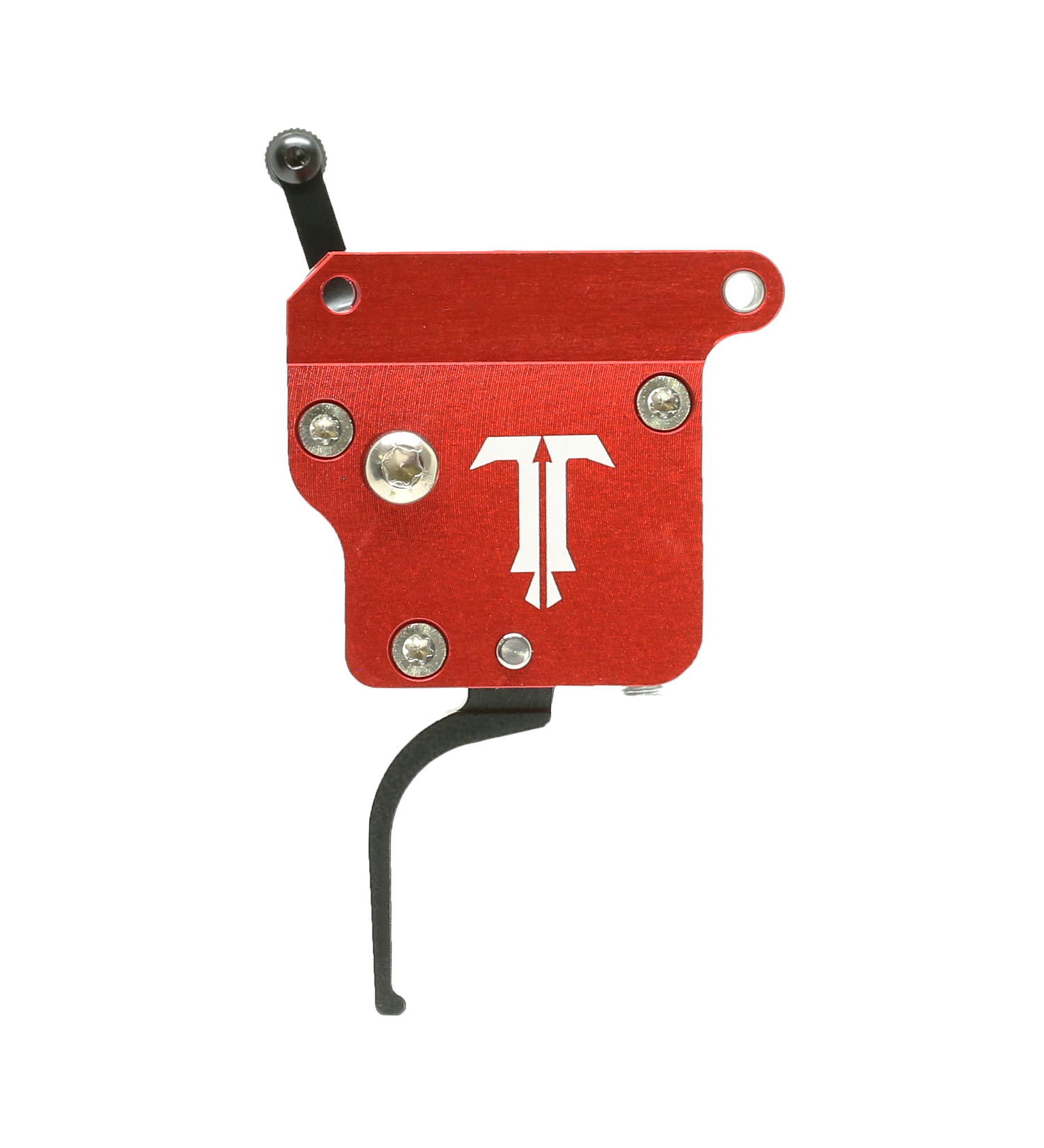

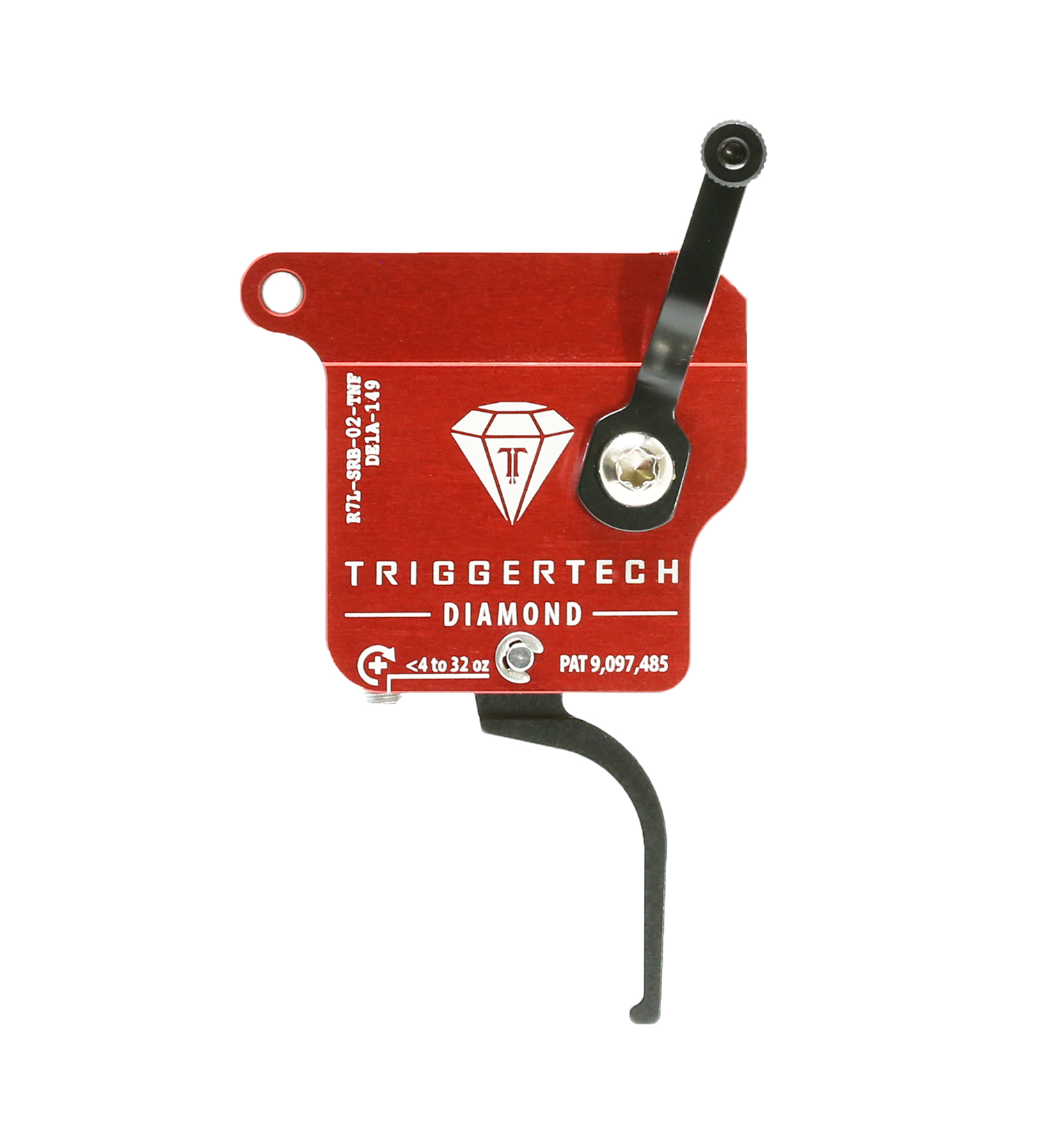

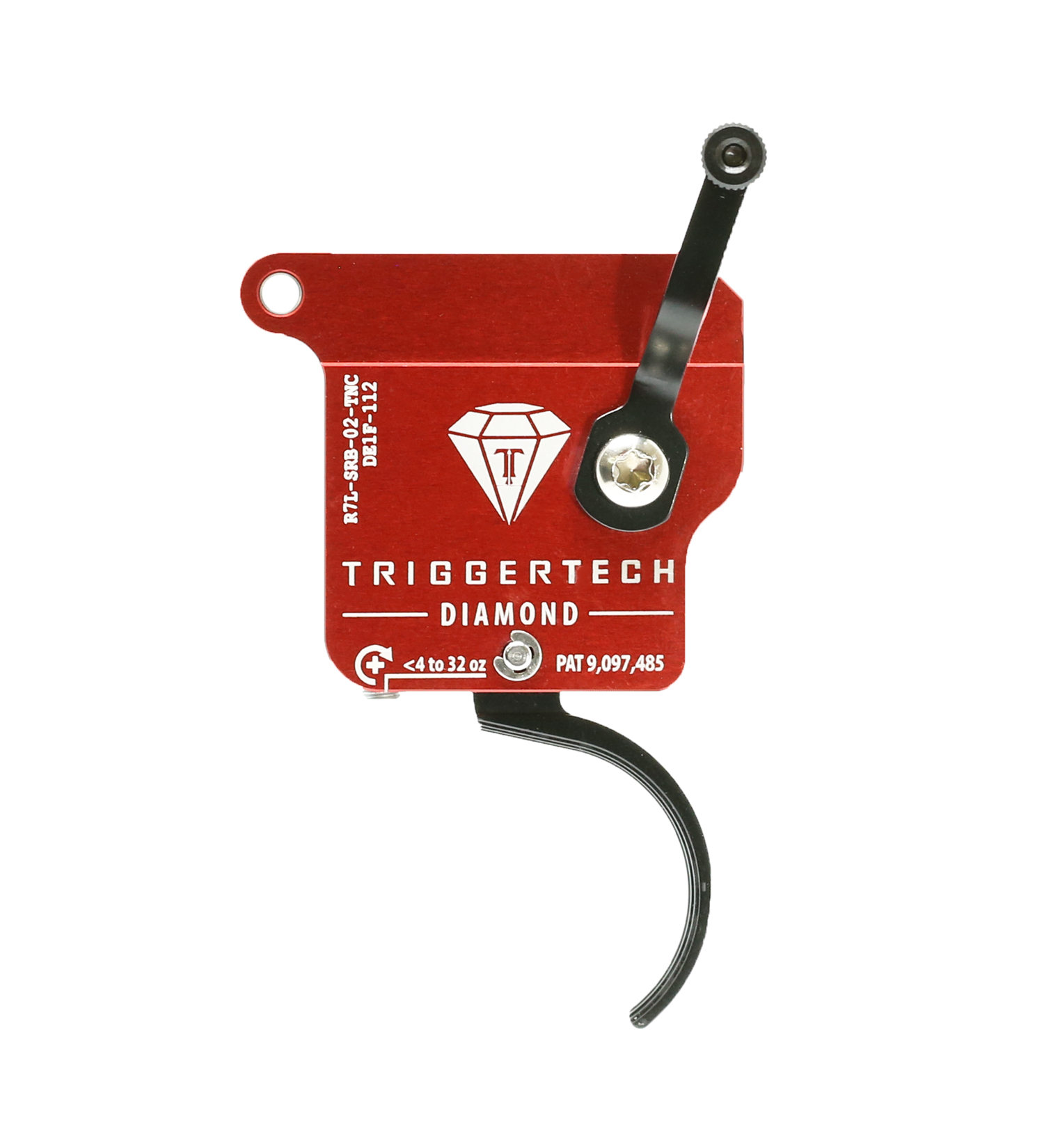

Trigger Lever Type: Traditional Curved, Flat Straight and Pro Curved

Trigger Action: Single Stage

Zero Creep™: Yes

TKR Technology: Yes

CLKR Technology: Yes

Overtravel: Sub .010""

Pull Weight: <4 oz - 32 oz

Bolt Release: Without

Safety: With (removable)

Hand: Right & Left

Warranty: Product lifetime

Material Details

Housing: 7075 Aluminum (anodized)

Key Components: 440C Stainless Steel

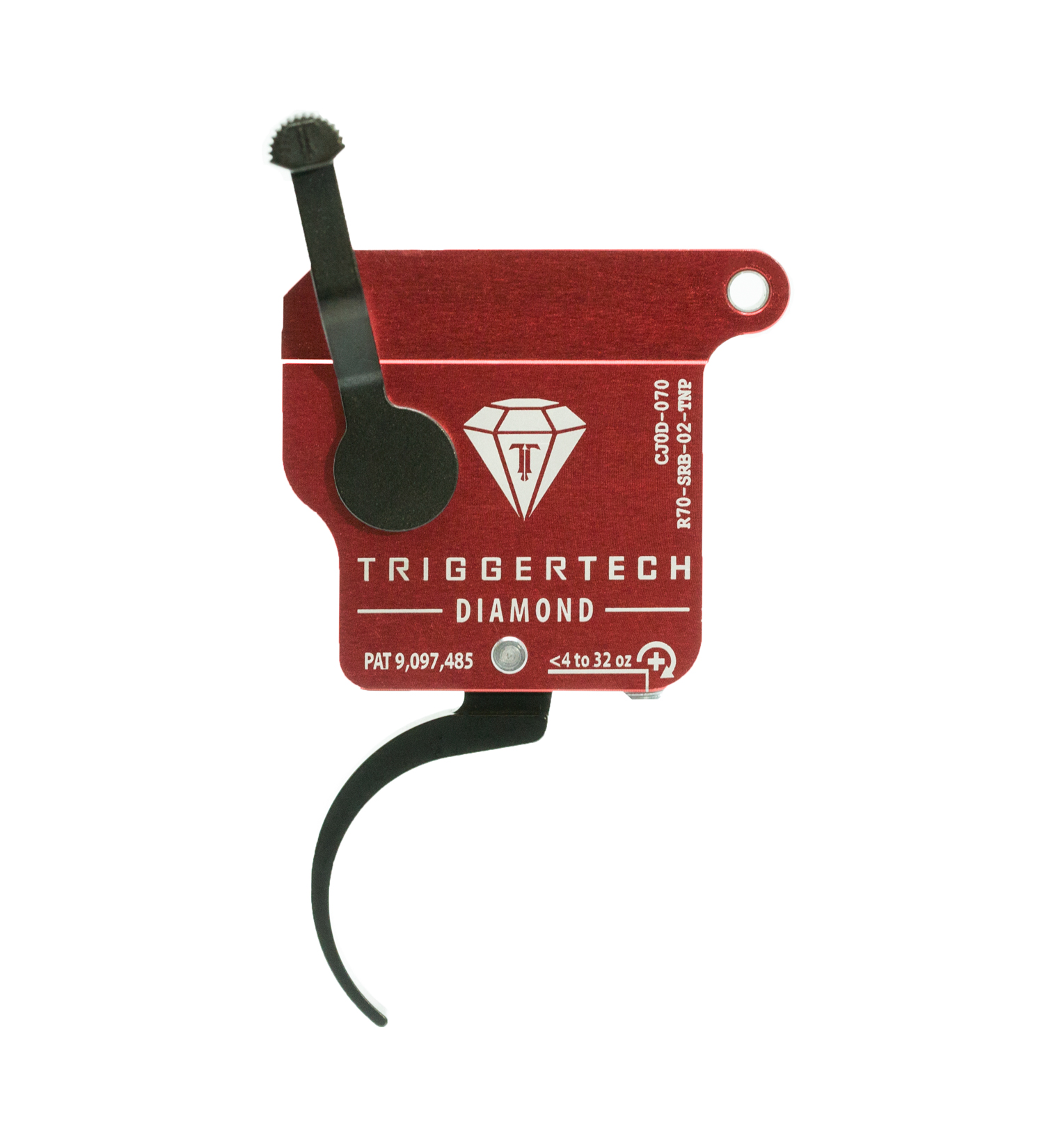

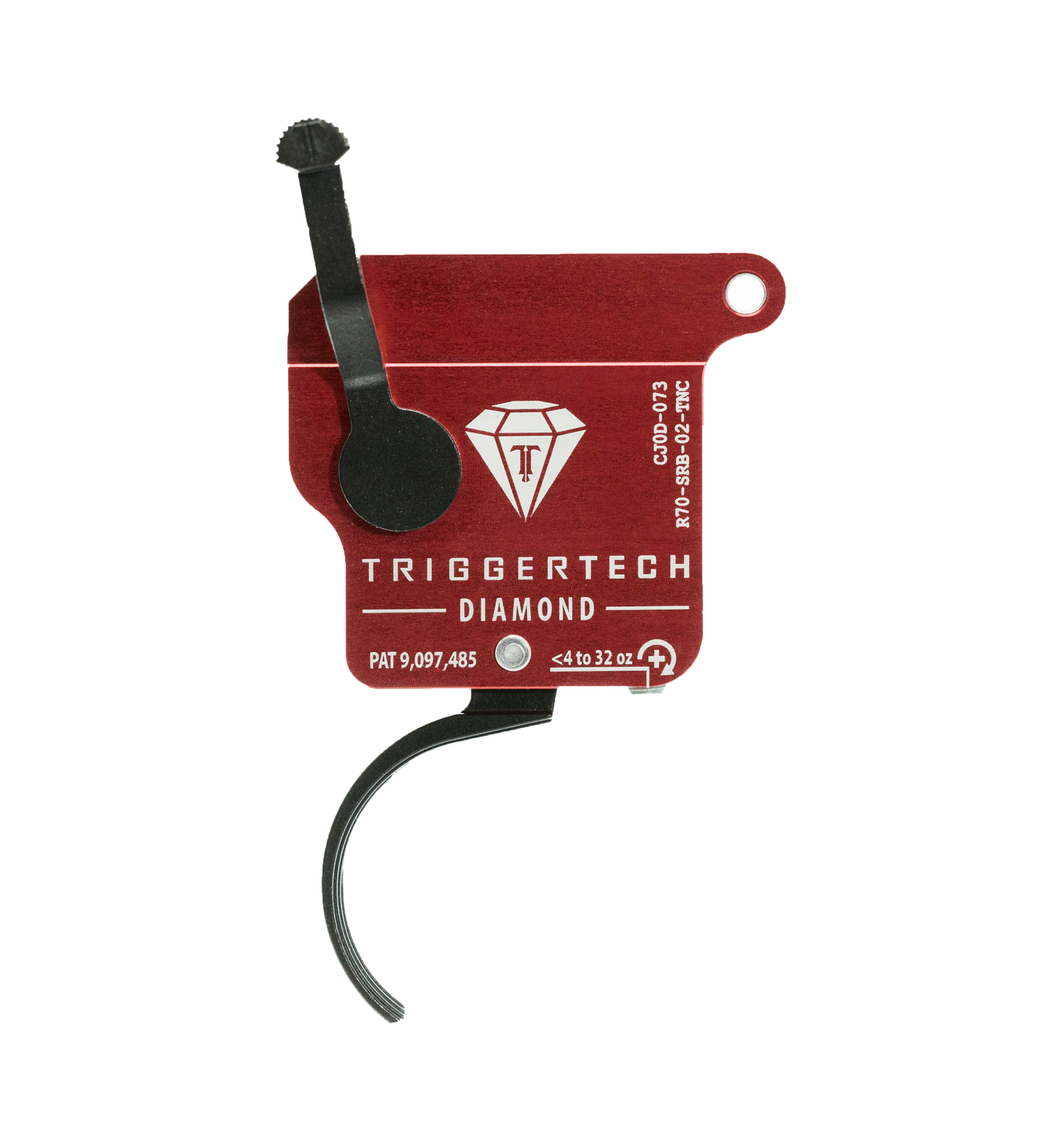

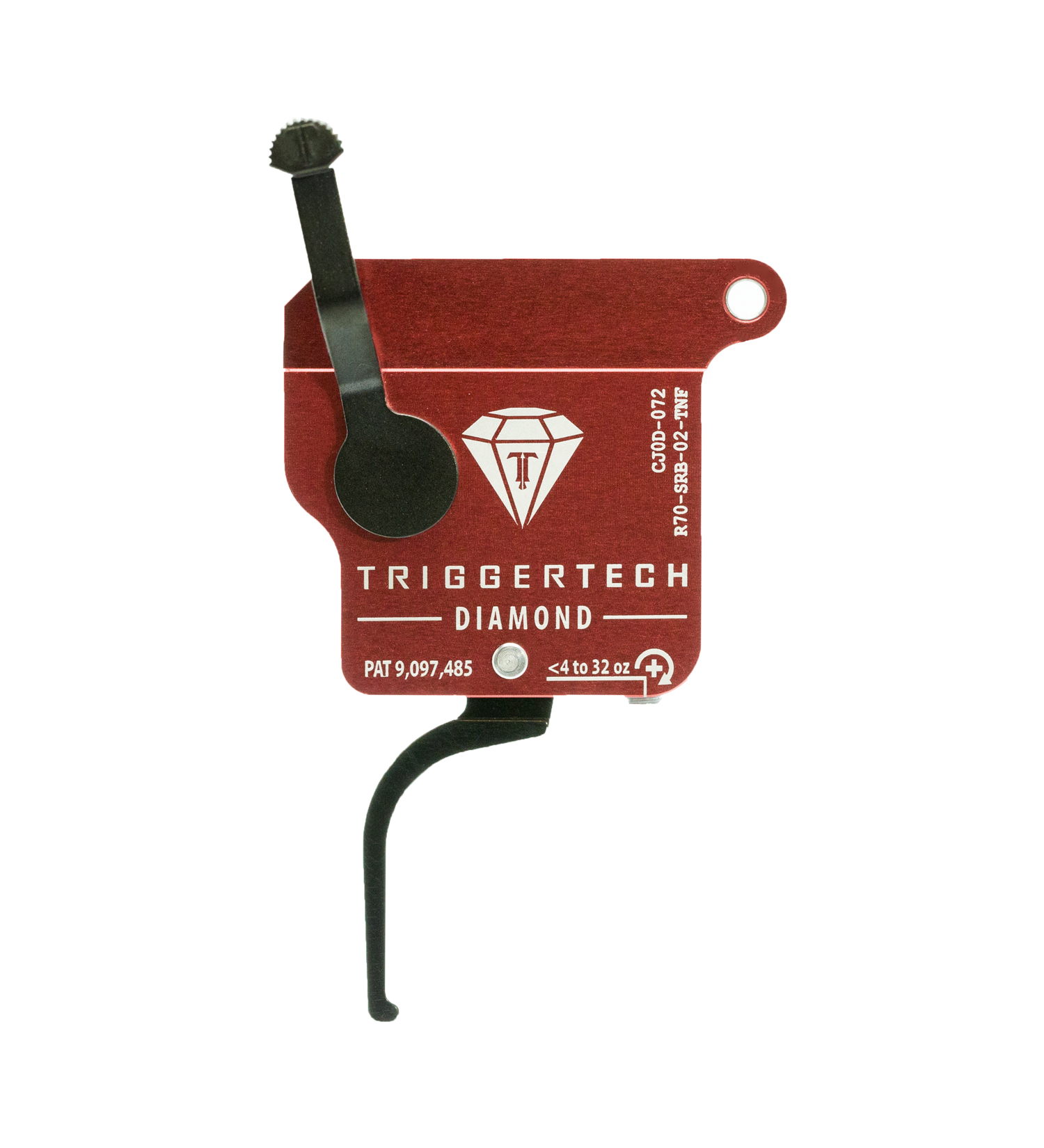

PVD Black – PVD stands for Physical Vapour Deposition. It is a hard and durable coating that is applied to external stainless components to give them a clean black color.
